Shop / LED Display Boards

LED DISPLAY BOARDS

Built for track & field and cross country timing

Pricing Request a quote or demo
A professional look for every meet

Results your athletes, coaches and fans can actually read.

Finished Results LED Display Boards are stadium-scale video boards purpose-built for track, field and cross country timing. One video cable is all it takes to mirror live results straight from your timing software. No proprietary protocol, no complicated setup.

Whether you are calling a Friday night dual meet or a state championship, these boards deliver sunlight-readable results up to 6,500 nits, full-motion video and photo support in one weather-resistant, travel-ready package.

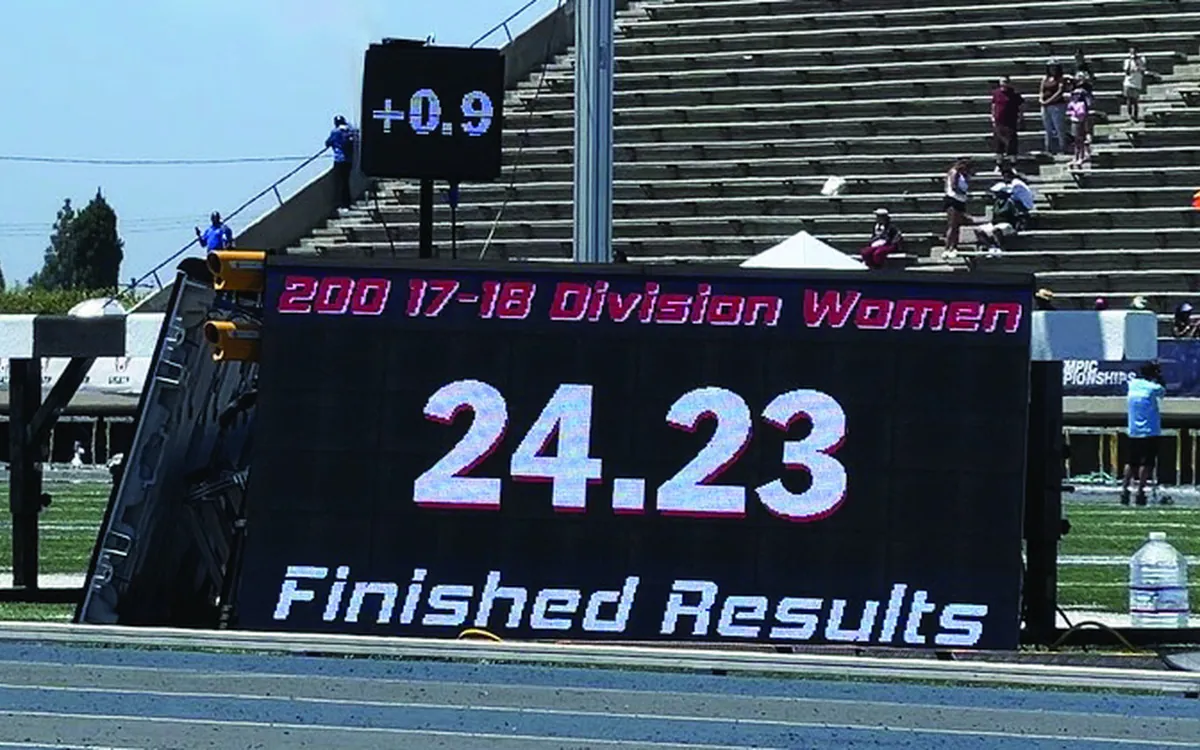

A display board showing 200 17-18 Division Women and 24.23, with a +0.9 wind reading above it
Live sprint results with wind reading, USA Track & Field Junior Olympics

Features

Stadium brightness

LED panels up to 6,500 nits stay readable across the entire stadium, even in direct sunlight.

Weather resistant

Reliable outdoor construction built for track, field and road race conditions.

One-cable video

A DVI input mirrors your computer screen for results, video or graphics. The DVI to HDMI cable is included, so a laptop plugs straight in.

Fully customizable display

Configure layouts for live results, pictures and full-motion video to match any event format.

P5 pitch detail

5 mm pixel pitch resolves names, marks and split times cleanly, not just large numbers.

Flight case included

Every board ships in a flight case built to survive a full season of loading, hauling and setup.

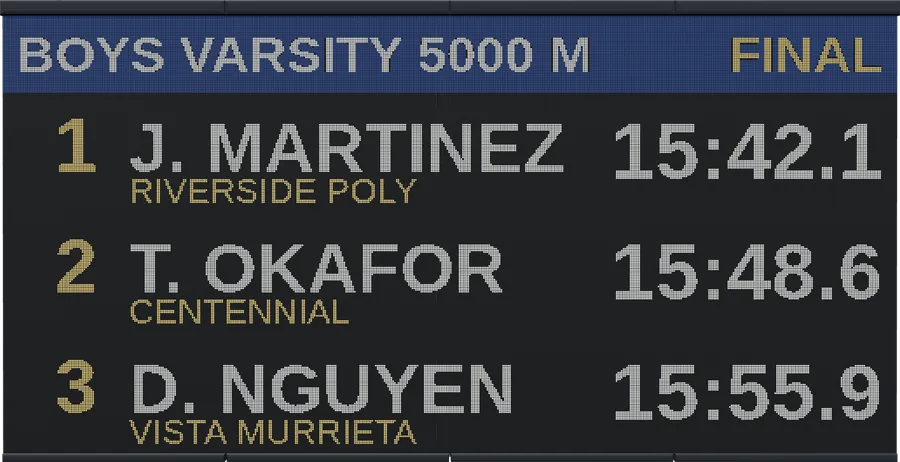

A results layout showing Boys Varsity 5000 M with three places, names, schools and times
Three lines of stadium-readable results: place, name, team and time
Front view of the board marked 2 m wide and 1 m tall
2 m x 1 m board, dimensioned front view

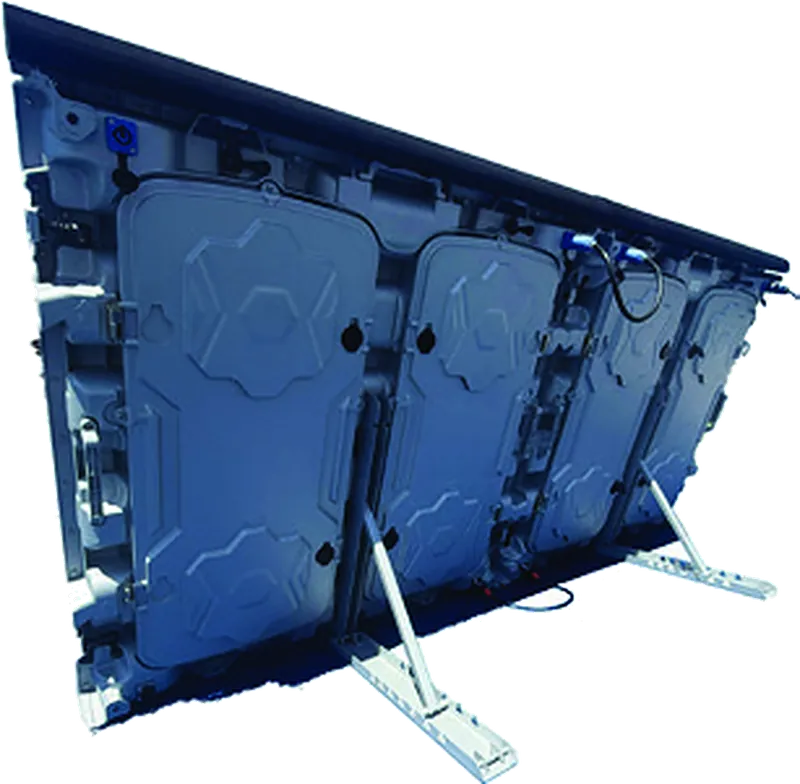

The back of a board standing on its folding supports
Folding supports deploy in seconds, no extra rigging

Display templates and content shown (results layouts, graphics and photos) are examples only and are not included with the purchase of the board.

One board, every event

Running time and place at the finish line, field marks and attempt-by-attempt results in the infield, team scores between events. Drive it from the software you already run.

Display modes

Fully customizable, depending on the software you use to drive the board. Display Score App adds scoreboard templates for almost all sports, including soccer, football and lacrosse. Display video, pictures and text.

Supported software

A video input is all that is required. Compatible with:

  • ResulTV
  • Athletic Scoreboard
  • MileSplit Scoreboard
  • Display Score App
  • Any DVI or HDMI source

Photos

At meets and up close. Tap a photo to see it larger.

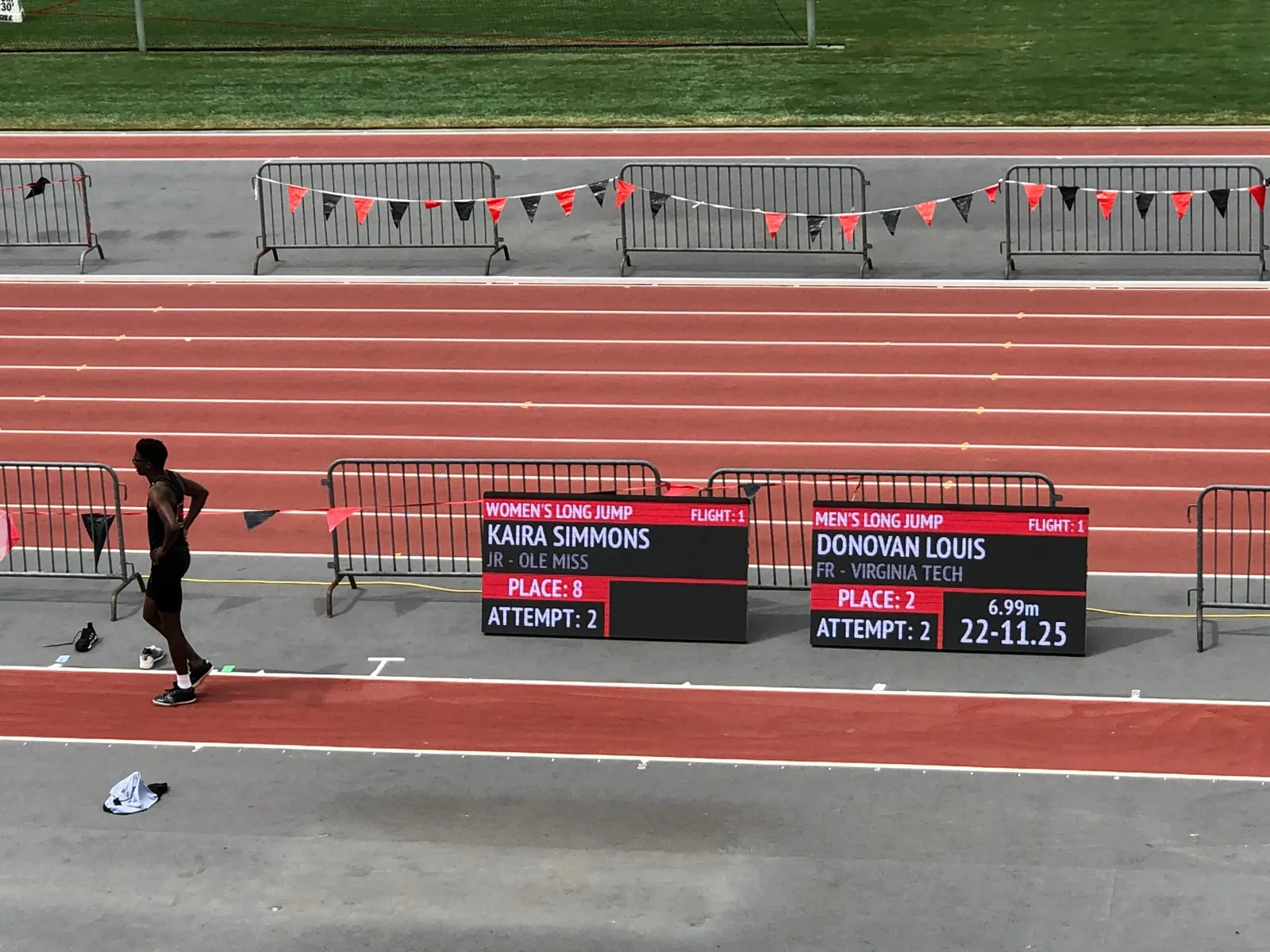

Two display boards beside a track showing women's and men's long jump results
Live long jump results, attempt by attempt

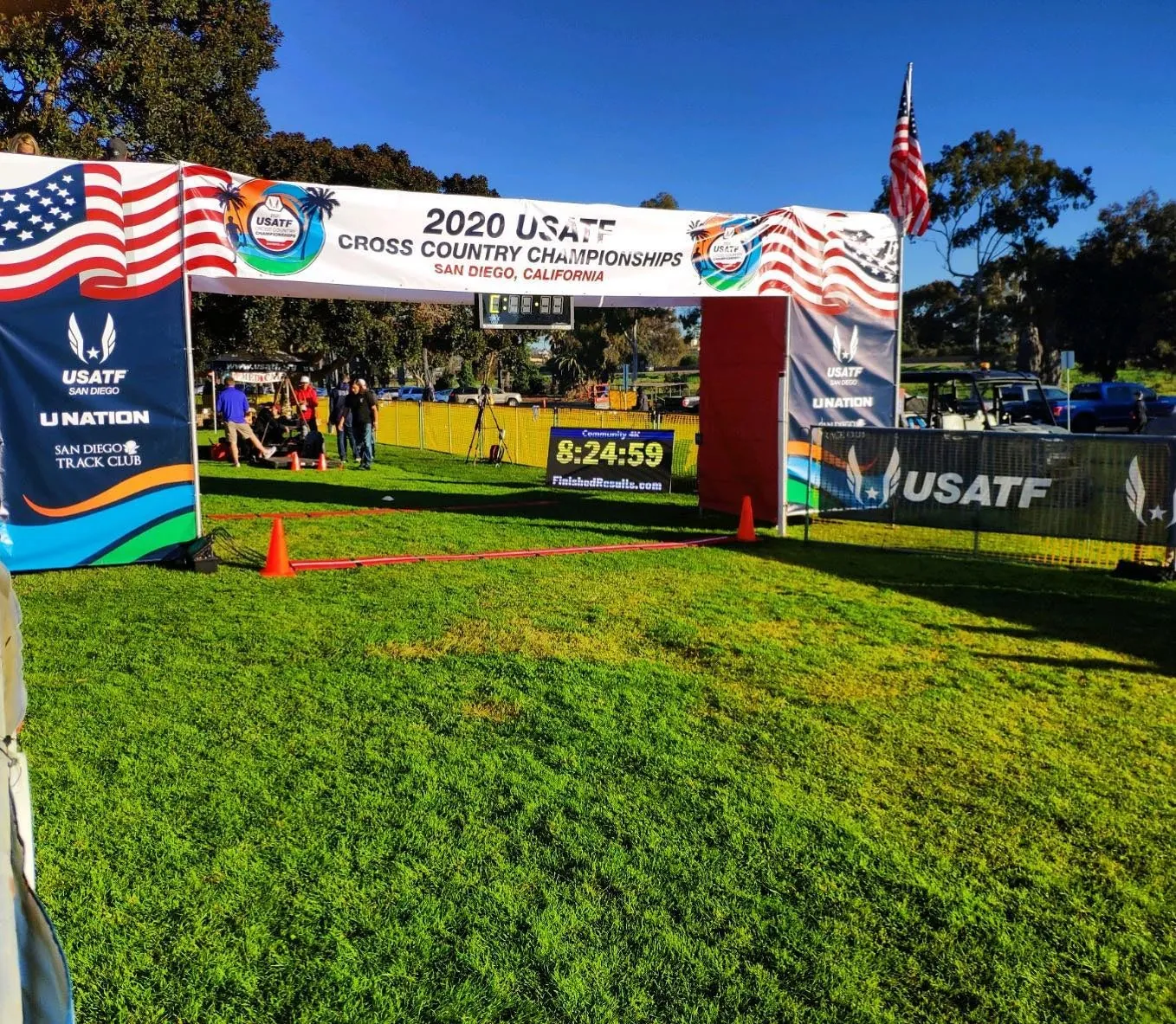

A display board showing Community 4K and 8:24:59 at the 2020 USATF Cross Country Championships finish
Community 4K finish time at the 2020 USATF Cross Country Championships, San Diego

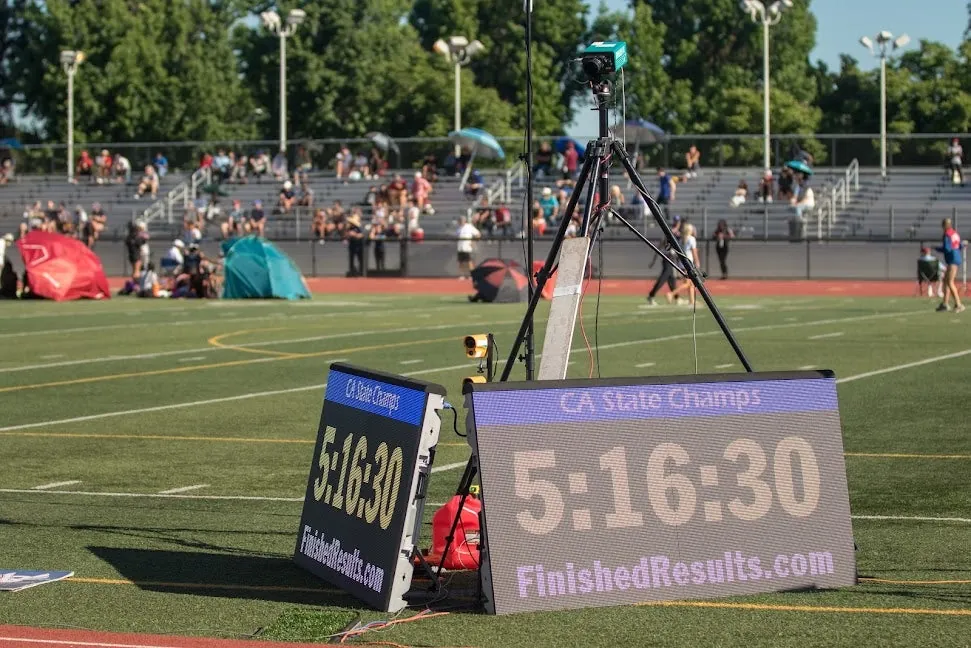

Display boards showing CA State Champs and 5:16:30 beside the track
Running time at the CA State Championships

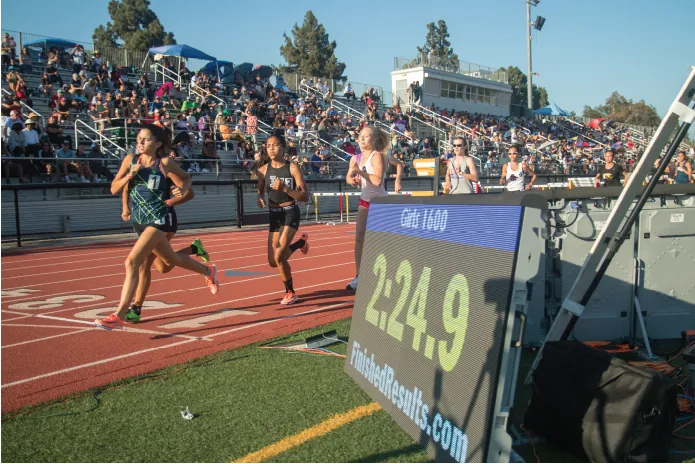

Runners passing a display board showing the running time
Running time at the finish line

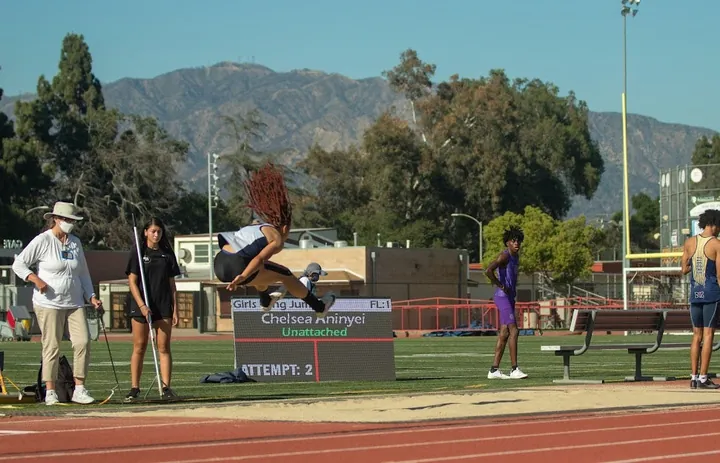

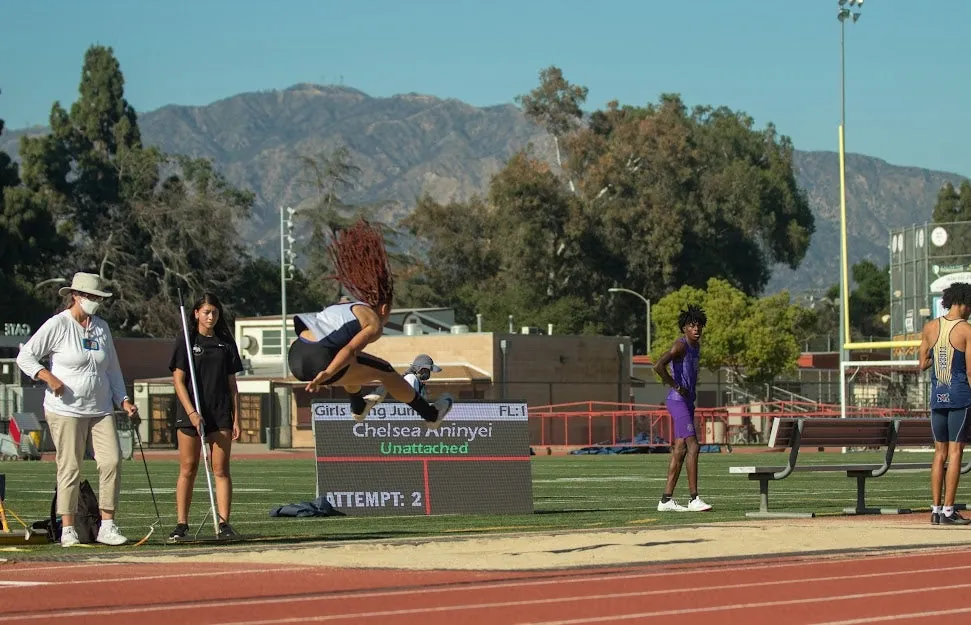

A long jumper in the air in front of a display board showing field event results
Field event results in the infield

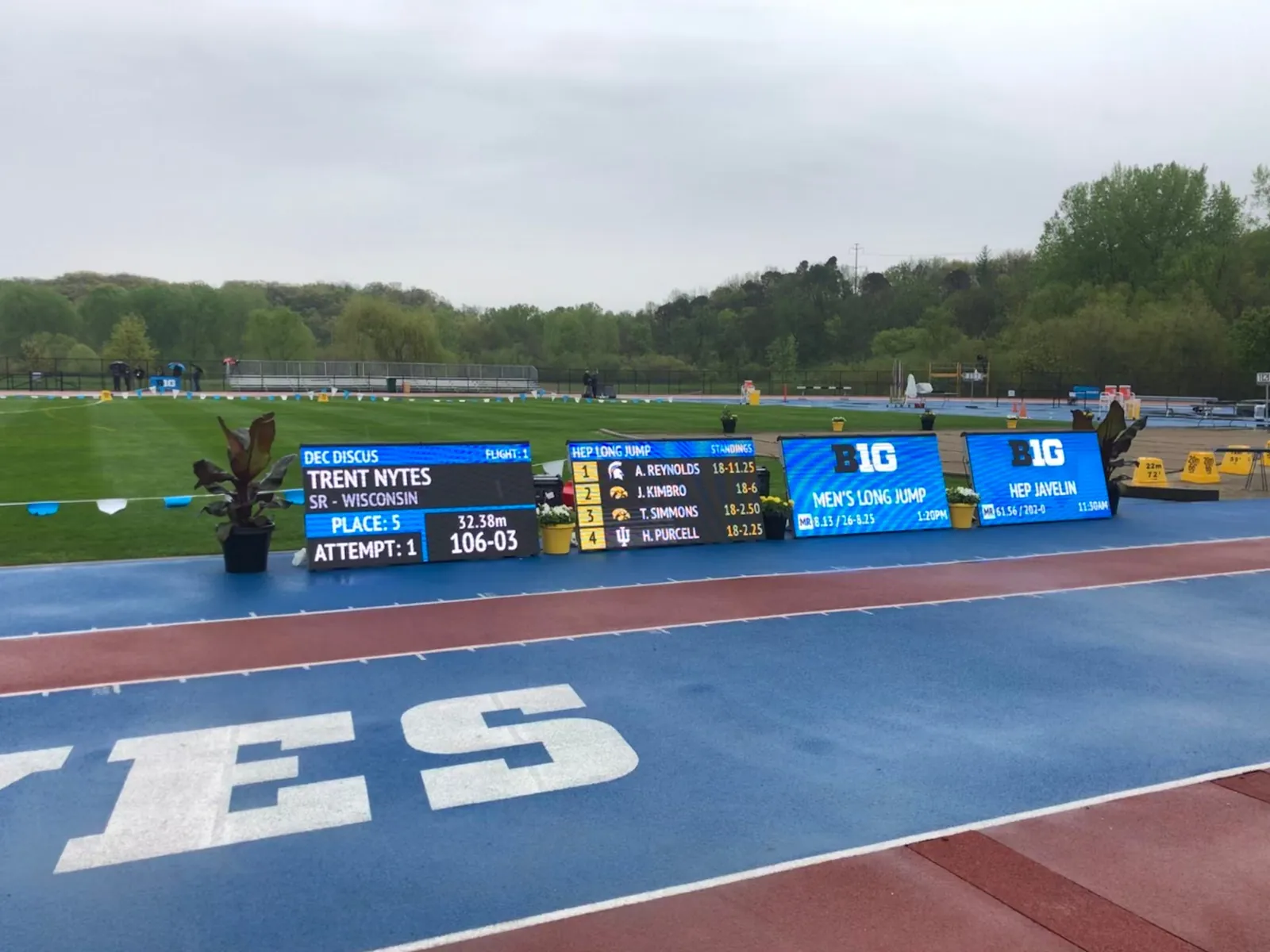

Several display boards set up across a stadium infield
Boards across the infield
A P5 LED display board on its supports showing three lines of results

Technical specifications

P5 P6
Pixel pitch 5 mm 6.67 mm
Resolution 384 x 192 px 288 x 144 px
Display size 2 m wide x 1 m tall 2 m wide x 1 m tall
Brightness Up to 6,500 nits Up to 6,500 nits
Weight 71 lb (32 kg) 71 lb (32 kg)
Video input DVI, with a DVI to HDMI cable DVI, with a DVI to HDMI cable
Power Standard 110V outlet or a generator Standard 110V outlet or a generator

Included with every purchase

  • 2 m x 1 m LED board
  • NovaStar LED controller
  • DVI to HDMI cable
  • Neutrik power cords
  • Flight case
Quick start guide
Setting up a display board. Product brochure
Two pages: features, specs and pricing. PDF, 870 KB.

Pricing

P5 LED Display

$6,595

5 mm pixel pitch, 384 x 192 px

Buy now

P6 LED Display

$5,950

6.67 mm pixel pitch, 288 x 144 px

Buy now

Used P6 LED Display

$3,495

6.67 mm pixel pitch, 288 x 144 px

Buy now

Ships by freight. Shipping is added to your order at checkout.

Bring stadium-grade results to your next meet

Request a quote or a demo for your timing company.

sales@finishedresults.com Brochure (PDF, 870 KB)
